Kent Link Networker
This is a class of
hardworking, humble units, which ply the dense suburban lines of South East
London. They are the result of ‘’Network 2000’’, a general rolling stock renewal
exercise by BR Business Sector ‘’Network SouthEast’’ (NSE). First mooted in 1986
the scheme, also know as the ‘’Networker Revolution’’, aimed to replace
slam-door stock on those suburban lines radiating out of the capital. On the
South Eastern Division specifically, this involved retiring 2/4EPB units dating
from the 1950s, whilst also making inroads for producing new stock for the Kent
Coast lines. At this time, however, it was deemed that existing stock on the
Kent Coast would be phased out over a longer time period than that on suburban
diagrams. In addition to the above, the project encompassed the replacement of
diesel stock on the ‘’Chiltern’’ lines from Marylebone, and on the ‘’Thames’’
line from Paddington.
Between 1983 and 1989 inclusive, commuter travel into and out of the capital increased by 23%. Over the years up to 2000, it was forecast that passenger numbers would increase by a further 15% – by 1990, approximately 473,000 passengers were using NSE services to London. To satisfy this growth in demand, investment was required in new rolling stock which offered the following:
A 15% increase in loading capacity
At least a 15% reduction in maintenance costs over existing stock
At least a 3% improvement in availability
A 24% saving on energy consumption
The ball was set
rolling in 1988, when NSE confirmed that two variants of a common design would
be produced: diesel and electric. The diesel units were to come in two and
three-vehicle formations, and be deployed on the ‘’Chiltern’’ and ‘’Thames’’
lines. As part of the scheme a brand new depot, tailor-made to service these
units, was planned for Aylesbury, Buckinghamshire. Those units working out of
Paddington were to be allocated to a new depot at Reading, situated within the
fork of the diverging Bristol and Exeter lines west of the station. The
new-builds were given the ‘’green light’’ to go ahead in 1989. By 1990, 89 new
carriages had been ordered for the ‘’Chiltern’’ lines and 91 for the Paddington
lines. These units became known as ‘’Class 165’’, or ‘’Networker-Turbo’’, and
construction of the vehicles was subcontracted to BREL, York. The units destined
for the Paddington lines were designated 165/1; although these were virtually
identical to their ‘’Chiltern’’ counterparts, they boasted a higher top speed of
90 MPH versus 75 MPH. In addition, the 165/1 also lacked Automatic Train
Protection (ATP). A final order for the diesel fleet was placed in March 1991.
This was for 63 vehicles, which were to be formed into 21-units of three
carriages each, and be deployed between Paddington and Oxford. These units were
designated ‘’Class 166’’, or ‘’Networker Turbo Express’’, and comprised a
revised internal seating arrangement, a 90 MPH top speed, and air-conditioning.
Protracted development of the air conditioning system meant there would be a delay between the
last Class 165 vehicles being completed at York and work starting on the first
of the Class 166 carriages.
Now moving onto the electric variant of the ‘’Networker’’ family for South Eastern Division routes, this itself was to come in two forms: ‘’suburban’’ and ‘’main line’’. Of the latter, this was first proposed in 1989 to replace the 4-VEP fleet on Kent Coast diagrams. The ‘’suburban’’ units had been in the design phase since as early as 1986, and a final mock-up was settled on in 1988. In May 1989, NSE submitted plans to the government for 676 new vehicles, to be formed into 169 four-vehicle electric units for South Eastern Division commuter lines. These units were designated ‘’Class 465’’ and branded as the ‘’Kent Link Networker’’. Formal approval was given for the construction of an initial 400 carriages on 31st August 1989. The order was split equally between the Class 165 contractor BREL, York, and Metro-Cammell, Birmingham (which was purchased by GEC-Alsthom in 1989). Originally, both companies had made separate bids to construct the entire Class 465 fleet with completely different traction packages. The Government preferred the BREL order, but objections from Metro-Cammell saw the contract split between the two companies. Whilst the external appearance of the batches of units from each company would be virtually identical, totally different internal traction and electronic systems would be incorporated. This would require separate stockpiles of spare parts, and mean that components were not interchangeable between the BREL and GEC fleets.
In February 1991, BREL completed a pre-production shell of a Class 465 driving vehicle. This was used as a test-bed for engineers, and allowed a dry run of installing all internal equipment. Body shells of the ‘’Networker’’ family of units were fabricated from aluminium, which reduced weight over an equivalent train built of steel, and also aimed to reduce maintenance costs. Body shells for the BREL batch were manufactured on a then new aluminium production line at York Works. Construction of those body shells for the GEC-Alsthom batch was split between ‘’Società Italiana Ernesto Breda’’ of Italy and ‘’Maquinista’’ of Barcelona, Spain. In February 1991, the first GEC body shell underwent stress tests at the Swiss Federal Railway’s workshops in Chur.

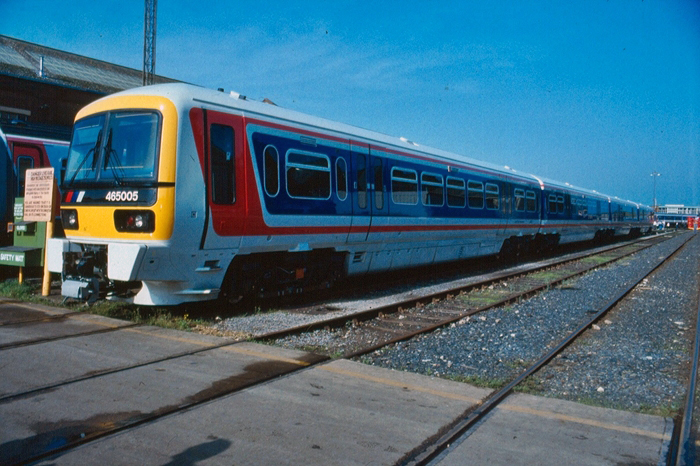

27th September 1992
Sparkling BREL-built No. 465005 is seen at Eastleigh Works Open Day. The units were equipped with buffers,
a feature which their diesel ''Networker Turbo'' counterparts lacked. © David Glasspool Collection

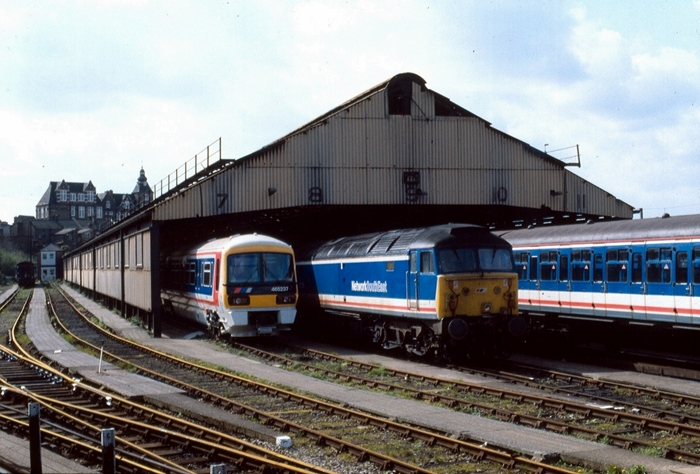

23rd March 1993
Brand new No. 465237, part of the batch built by Metro-Cammell (GEC-Alsthom), is seen stabled within Clapham
Junction carriage shed, alongside stock of a different generation. The diesel is Class 47 No. 47705, which at that
time was still hauling Waterloo to Exeter services. Scheduled locomotive-hauled services on that route ended on
10th July 1993. Happily, No. 47705 is still with us, and has since been converted to a Class 57 ''Thunderbird''
locomotive for ''Virgin Trains''. © David Glasspool Collection
27th December 2002
A grubby No. 465215 is seen stabled at Dartford's platform 3, forming a Victoria via Bexleyheath service. The
colours on this particular unit were now fading, and the ten year paint warranty had virtually expired.
© David Glasspool
