Lordship Lane
This station has
closed no less than three times during its near nine decade existence. The first
company to serve the immediate Sydenham Hill area which became ‘’Crystal
Palace’’ was the LB&SCR, with its 1853-authorised branch to the locality from Sydenham. In April of the previous year, the Crystal Palace had been removed
from Hyde Park, where it had originally been erected as part of the 1851 Great
Exhibition, and re-constructed at Sydenham Hill on an even larger scale. The
LB&SCR’s branch came into use on 10th June 1854. The 1853-formed ‘’East Kent
Railway’’ did not even have its first section of operational track until 1858,
but expansion thereafter was swift, and a mere four years later, plans were
afoot for a second branch to Crystal Palace. On 17th July 1862, an independent
concern known as the ‘’Crystal Palace & South London Junction Railway’’ (CP&SLJR)
was formed to undertake the construction of a rather circuitous 6½-mile long
branch. This ultimately left the LC&DR’s trunk line at Brixton, passing through
Peckham and Nunhead whilst heading eastwards, before assuming a direct southward
heading immediately after the latter to eventually come to an end at a grand
terminus.
The LC&DR began running scheduled services to Crystal Palace on 1st August 1865,
leasing the route from the CP&SLJR from the outset (the company was not absorbed
into the LC&DR until a decade later). Lordship Lane came into use exactly one
month later, as an impressive intermediate two-platform affair. The platforms here
were elevated upon an embankment; thus, they were of timber construction to keep
weight to a minimum, such a practice also being used at nearby Honor Oak. The
station was a somewhat grand arrangement, featuring an imposing two-storey high
brick-built structure on the ‘’down’’ side. Parallels can be drawn between the
building and that still in existence on the ex-LSWR network at
Axminster,
although the former was nearly twice its size, demonstrating a pair of large
two-storey pitched roof sections. Since the line here was upon an embankment,
the platforms met the first floor of the main building. The structure’s
ground-level entrance would have been worthy of the Crystal Palace itself, it
featuring three Cathedral-style archways supported by columns. Such elaboration
was required to allow the station to sit harmonious with the nearby Dulwich
College, which at the time had construction work ensuing on a vast complex of
red brick Gothic buildings. The college had emerged on its present 60 acre
Dulwich Common site in 1857, and had permitted the CP&SLJR to use part of the
area for its Crystal Palace route. This was on the condition that the college
could dictate the style of the station which resided there – that of Lordship
Lane. The structure on the ‘’up’’ side was, naturally, much more modest compared
to its ‘’down’’ side counterpart, but it too was architecturally intriguing.
Supported by a brick base to bring it up to track level, the shape of waiting
shelter here was comparable to that of a signal box, it having a neat
pyramid-type pitched roof, complete with glazed sides. Both platforms were
protected by flat-roofed canopies of unequal length, the slightly longer example
on the ‘’up’’ surface partly compensating for the smaller internal waiting
accommodation on this side.
No formal goods facilities were ever present at the site, but a pair of
London-facing refuge sidings were in evidence, immediately south of the ‘’up’’
platform, trailing off this line. From about 1880, these were controlled from a
signal cabin, positioned sixty yards south of the ‘’down’’ platform. At this
time, contractor Saxby & Farmer, a favourite of the LC&DR’s, had been drafted in
to re-signal the route, its products appearing at the branch line’s intermediate
stations and at the terminus.
The first changes to the station came under SE&CR auspices. These included the
replacement of the flat-roofed canopies with arguably more intricate
upward-sloping types. A number of stations along the Catford Loop Line were also
receiving similar treatment at the time. In addition, a trailing crossover
between the two tracks was installed in-between the platforms, and those sidings
south of the site were reduced to one. Despite these enhancements, the station
was subject to closure with the whole of the branch on 1st January 1917, as
World War I compelled cutbacks – if only temporary – to be made. The SE&CR had
to make similar closures at Deptford and Spa Road two years earlier, although
these two stations never re-opened to traffic under this company's ownership.
The conflict ended in 1918, but service on the Crystal Palace branch was not revived
until 1st March of the following year.
Further alterations were to come on the advent of the Southern Railway in 1923;
this company soon put into place a programme of electrifying ex-SE&CR suburban
lines. Of the third rail system, the Crystal Palace branch was one of the
earliest to commence electric operation, scheduled services beginning on 12th
July 1925. This formed part of the Victoria/Holborn Viaduct to Orpington
electrification. In preparation for this, track rationalisation at Lordship Lane
occurred: this involved the abolition of the crossover and remaining
siding, making the Saxby & Farmer cabin obsolete. The platforms were also
extended at their southern ends with prefabricated concrete, these eventually
reaching the territory of the signal box. More drastic changes were yet to come under
the SR’s tenure, but not ones enacted by the railway company itself. The station
was severely damaged by German raids in 1944, which saw a V1 Flying Bomb fall on
20th June of that year, and a V2 on the 1st of the following November.
Consequently, such attacks destroyed most of the southern half of the main
‘’down’’ side building, and obliterated all ‘’up’’ side waiting accommodation.
Canopies were also lost during the raid, and the station became a shadow of its
former self. However, during this period the station and, indeed, the whole
branch, was again out of use, having been subject to closure on 22nd May 1944
during the wartime period. The line was again opened, for the third and final
time, on 4th March 1946. The Lordship Lane area had suffered conventional bomb
attacks previously in September 1940, although no significant damage was
sustained at this time.
Sadly, the Crystal Palace had burned down on 30th November 1936, after a
catastrophic fire. Unsurprisingly, traffic figures along the ex-LC&DR’s branch
plummeted, and the line soon became an unimportant appendix of South East
London’s suburban network. The ex-LB&SCR Crystal Palace station fared better for
traffic figures, precisely because it resided on a through route, rather than a
terminating branch line intended mostly for excursion traffic. The Crystal
Palace branch’s last day for public use was 18th September 1954, by which time
Lordship Lane was a sorry sight, devoid of all style and finesse at platform
level. The ‘’up’’ side waiting accommodation had been reduced to a corrugated
metal shelter, but the ‘’down’’ side main building still demonstrated its fine
triple-arched entrance at ground level. 2½ years after closure, the buildings
were razed to the ground.
September 1954
A London-bound view from September 1954 reveals a rather sorry scene at Lordship Lane. The SR concrete
platform extensions of 1924 are evident in the foreground. The original platform lengths remained wooden
until the very end. The pitched roof of the ''down'' side main building can be seen beyond the trees. Before
World War II, the structure boasted two such pitched-roof sections, but the second was destroyed by a Flying
Rocket. On the left can be seen the corrugated metal shelter, which served as waiting accommodation on the
''up'' side from 1946 onwards. The crossover mentioned in the main text was formerly situated in the immediate
foreground. In the above view, the station retained Southern Railway ''Target'' name signs. © David Glasspool Collection
14th February 2009

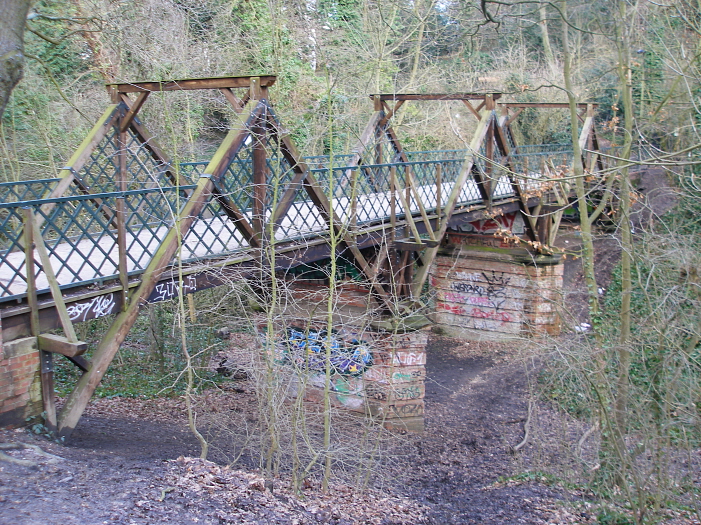

Sadly, the entire site of Lordship Lane station has been obliterated by residential development, but some railway
gems continue to exist just to the south. A section of track bed remains intact within what has become ''Dulwich
Upper Wood'', a nature reserve. Between the brick piers of this footbridge (which dates back to the opening of
the line in 1865), formerly resided the double-track route. The piers are original, but the bridge itself has been
rebuilt a number of times using new timber and metal, although remains faithful to the original design. The
Crystal Palace direction is to the right of the photograph, and this is where the next view takes us. David Glasspool
14th February 2009

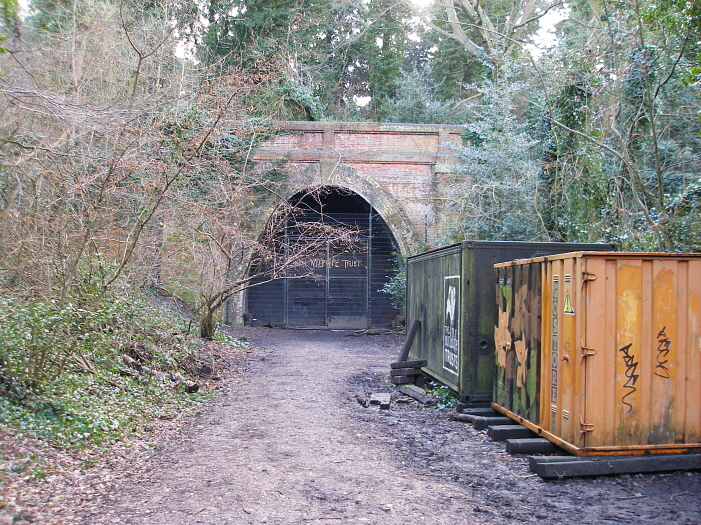

Looking south towards Crystal Palace, within Dulwich Upper Wood, we see ''Crescent Wood Tunnel'', some
400-yards in length, and once leading to Upper Sydenham station. It joins a notable list of surviving disused
railway tunnels on the former South Eastern Division, and is now home to bats. David Glasspool
